Hard facts Bubble King® Double Cone 300 BK DC 24V:
max. 2.500 l/h Air – 7.500 l/h Water = 1 (Bubble King®) BK2500 DC 24V
Base plate: 13.78ʺ x 16.54ʺ / height ~ 23.62ʺ (35 cm x 42 cm / height ~ 60 cm)
Technical data Bubble King® Double Cone 300 BK DC 24V:
1 x Skimmer-pump: Bubble King® 2500 DC
Technical data Red Dragon® Bubble King® DC skimmer pump:
With needle wheel
adjustable DC-pump with 24V / 67W
Delivery rate: max. 2.500 l/h Air inlet ~ 7.500 l/h Water inlet
Wattage – active power: P max. 67 Watt/h

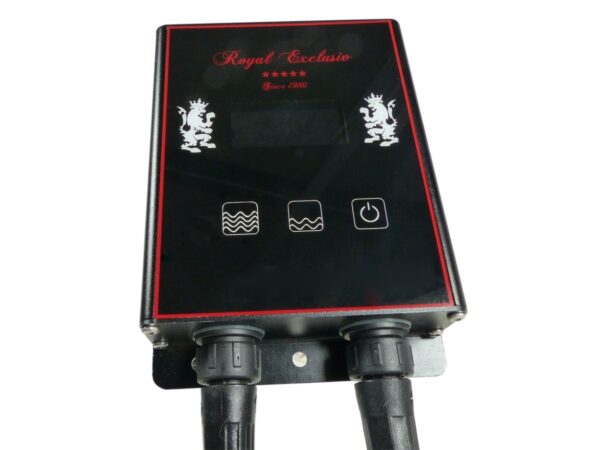

Removable controller and power supply
Cable length pump – controller: ~ 3 m
Cable length controller – power supply: ~ 1,5 m
Operating voltage: 100 – 240 Volt 50/60 Hz
Protection class: IP 68 pump
with 10V connection (jack plug)
Water level: ~ 200 mm up to ~ 250 mm
Outlet absorbate: 405 mm
Weight skimmer: 15 kg inclusive pump
Dimension skimmer without pump:
13.78ʺ x 16.54ʺ length / ~ 23.62ʺ height
Dimension skimmer with pump:
15.75ʺ wide / 21.65ʺ length / ~ 23.62ʺ height
Dimension skimmer without pump:
350 mm wide / 420 mm length / ~ 600 mm height
Dimension skimmer with pump:
400 mm wide / 550 mm length / ~ 600 mm height
