The HYDROS Sole is an aquarium controller hybrid with a heavy-duty liquid dosing pump designed for continuous dosing tasks in saltwater and freshwater aquariums. It can be used independently or with other HYDROS devices.
Controller Designed for Continuous-Duty Liquid Dosing Applications
The HYDROS Sole is an aquarium controller hybrid with a heavy-duty liquid dosing pump designed for continuous dosing applications like controlling effluent in a calcium reactor, kalkwasser additions, dosing liquid foods, feeding a sulfur reactor, and performing water changes.
The controller is suitable for both saltwater and freshwater aquariums and can be used independently or in conjunction with other HYDROS devices. The Sole can send alerts and notifications, and when used with a HYDROS XP8 or WiFi Power Strip, it can also control outlets for lights, pumps, feeders, and other aquarium accessories.
Sole Includes:
- Sole Controller
- Power Supply
- Calibration Beaker
Specifics:

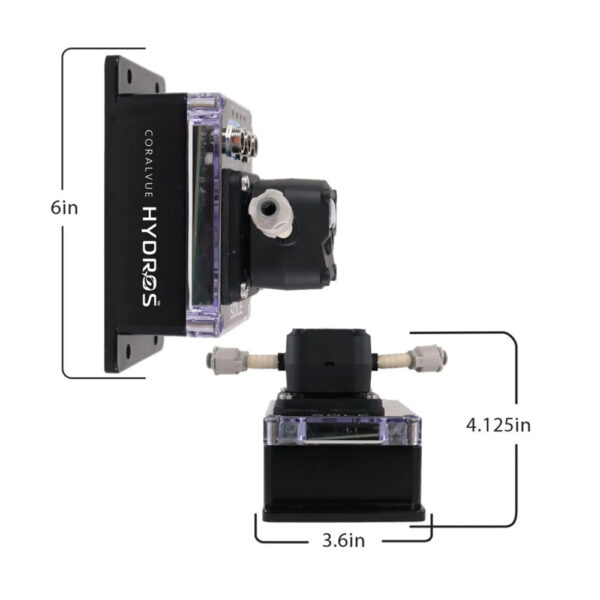

- Dimensions (LxWxH): 6 x 3.6 x 4.125in
- Tubing Size (IDxOD): 3 x 5mm (0.25in Push-fit Fitting)
- Pump Set Speeds (mL/min): 0.1 to 300
- Head Pharmed Tubing Life: ~ 1,000 hours
What you can expect from your HYDROS Smart Device
*HYDROS WiFi Power Strip, Control XP8, or Smart Plug required, but not included with Sole
- Control your HYDROS device(s) from anywhere in the world using the technologically advanced HYDROS cloud-based app
- Ability to monitor and control your HYDROS device(s) locally through WiFi
- A fast dual-core 32-bit processor that allows control decisions to be made within each device
- The user sets the alerts and notifications
- Internal health monitoring to report voltages, currents, CPU status, and the internal temperature of each device
- HYDROS Command Bus connections to transfer data and power to devices
Quick & Easy Setup
There is no complicated programming language to learn. If you can operate a smartphone, you can be the operator of a smart aquarium—tap, drag, press, or flick to adjust settings using intuitive icons and simple menus. Schedule each component in your aquarium life support system to run at a specific time, frequency, or intensity. You can also use real-time data and easily configure more complex actions.
Splash Proof, Dust Proof, and Secure Connection
HYDROS devices look like industrial controllers because they are built to function in the harsh environment of a marine aquarium. The Robust HYDROS enclosure and aircraft-style connectors ensure long-term reliability in the face of splashes and corrosive salt spray.

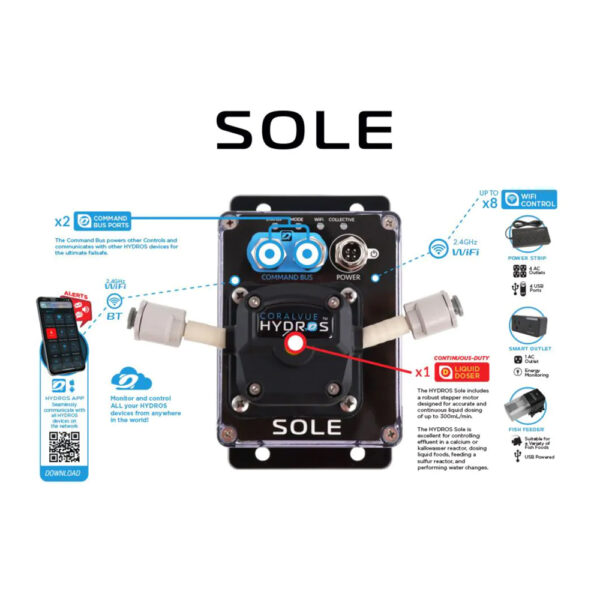

Command Bus – 2 Available
The Command bus communicates with other HYDROS devices for the ultimate failsafe and can also power other Control devices.

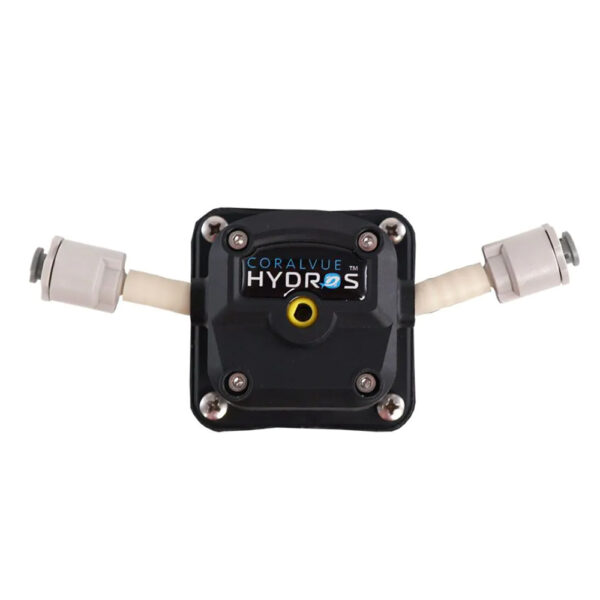

Continuous Duty Liquid Doser
The HYDROS Sole features one (1) continuous-duty liquid dosing pump that is capable of controlling effluent in calcium or kalkwasser reactors, dosing liquid foods, feeding a sulfur reactor, and performing water changes.
The Sole Doser Features:
- Quiet Operation
- Robust Stepper Motor
- For Continuous Use
- Can Run in Reverse
- Includes 1/4″ Push-fit Fittings
- Easy to Service
Control up to 8 WiFi Devices
The HYDROS App allows you to create rules and set schedules to control our 4-Outlet WiFi AC Power Strips and Smart Outlets. Quickly turn on or off different pieces of aquarium equipment like pumps, powerheads, lights, heaters, algae scrubbers, UV sterilizers, protein skimmers, and more.
*WiFi Power Strip or Control XP8 is required, sold seperately
WARRANTY
CoralVue, Inc. and HYDROS hereby guarantee this product to be free from defects in material and workmanship for a period of:
- One (1) year warranty on device body/housing
- One (1) year warranty on dosing pump motor (not dosing head(s))
- Tubing, head rollers, and head bushings are considered wearable parts because they experience regular friction, pressure, and use over time, leading to natural degradation. Since these components are expected to wear out as part of normal operation, they are not covered under the limited warranty.
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
Click here to learn more.
PRODUCT SUPPORT
To submit a warranty claim, please visit our CoralVue Support Portal.
