Hard facts Mini Bubble King 200 extra slim VS (24V Technology):
max. 1500 l/h air-intake // max. 4,000 l/h water-intake
with Red Dragon® X pump 50 Watt / 1,500 l/h air intake
Base plate: 22 cm x 22 cm / height ~ 56 cm
Technical data
Skimmer-pump: Red Dragon® X pump 50 Watt / 1.500 l/h air intake
Delivery rate: max. 1,500 l/h air-intake // max. 4,000 l/h water-intake
Wattage – active power: P = 15-50 Watt/h
Operating voltage: 230 Volt 50 Hz (also in 110V/60Hz available) (24V Technology)
Protection class: IP 68
Water level: ~ 130 mm up to ~ 300 mm
Weight skimmer: 7.1 kg inclusiv pump and controller
Height of intake side: center 70 mm

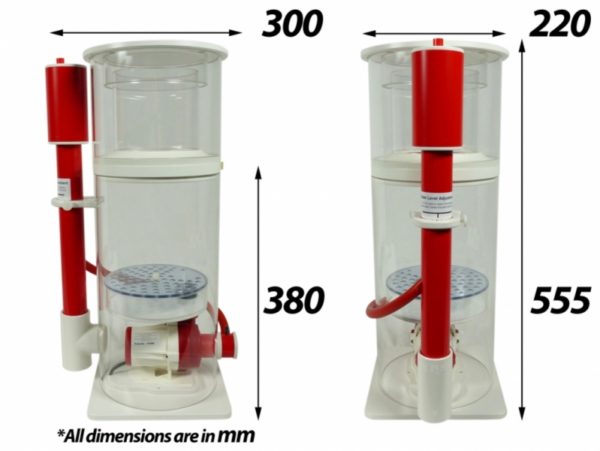

Dimension skimmer: 300 mm wide / 220 mm length / ~ 555 mm height
Red Dragon® X pump 50Watt 1.500 l/h
Technical data Red Dragon® X pump 50 Watt / 1,500 l/h air intake:
max. 50 Watt/h, adjustable 15-50 Watt
speed adjustable Brushless DC pump (24V Technology)
Intake side: Nozzle with ozone & air plug
Pressure side: reducing ring Ø 32 mm
Delivery rate: max. 1.500 l/h air-intake // max. 4.000 l/h water-intake
Operating voltage: 230 Volt 50 Hz (also in 110V/60Hz available) (24V Technology)
Protection class pump: IP 68 control unit: IP 66
Weight pump: 2,3 kg
Dimension pump: 110 mm wide / 190 mm length / ~ 150 mm height
Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height
RDX Skimmer Pump – Operating_and_maintenance_manual.pdf
- Saltwater resistant M4 grade 2 titanium screws
- Saltwater resistant parabolic rubber feet for acoustic decoupling
- Extreme low noise brushless DC-delivery pump with external control electronics
- High efficient technology, Sine Wave for very quiet running
- Easy usage and maintenance, low risk of calcification
- compact design against vibrations and oscillation
- CE conformity, developed and built
- high quality touchscreen display with feeding function
(protection against dry-running, over heating, over voltage, blocking etc.)
- included in the scope of delivery:
- Pump with 2m supply line
- Controller with 1,5m supply line
- Power plug with 1,5m supply line / rubber connector
- Nozzle with Air- and Ozone connection
- Manual German/English
