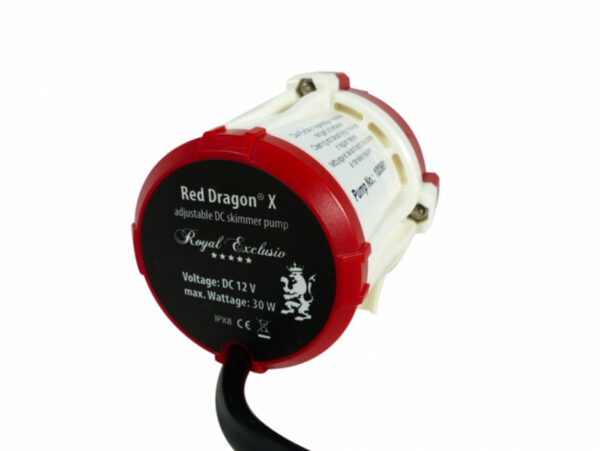

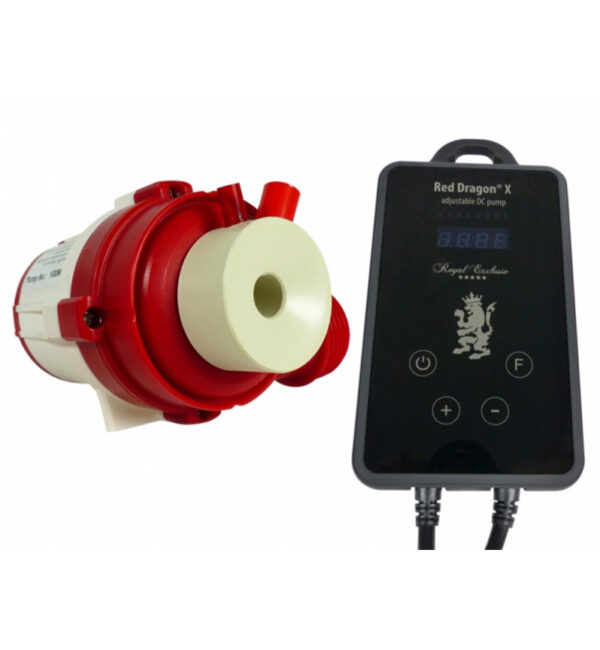

Technical data Red Dragon® X DC skimmer pump:
With needle wheel
adjustable DC-pump with 24V / 30W
Delivery rate: 200-750 l/h Air inlet ~ 300-3.500 l/h Water inlet
wattage power: Pmax = 30 Watt/h
Speed adjustable Brushless DC pump
Revolution per minute (rpm) – Display
Adjustable in 8-steps from ~ 7W up to 30W
Operating voltage: 100-240 Volt 50-60 Hz (24V Technology)
Protection class pump: IP 68 control unit: IP 66
Weight pump without controller: 0,6 kg
Height of intake side: center 45 mm
Dimension pump: 80 mm wide / 130 (120 without inlet protection) mm length / ~ 110 (135 with socket) mm height

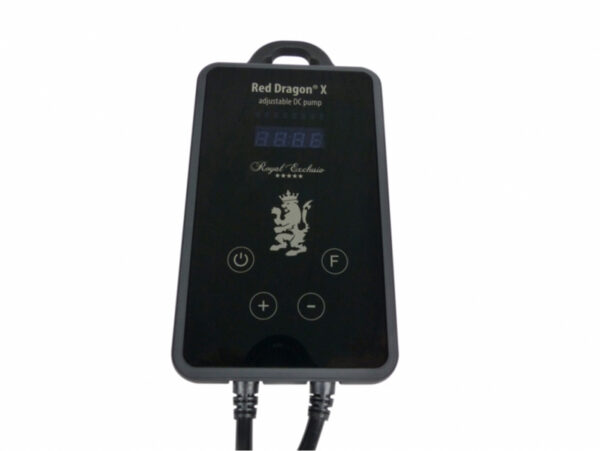

Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height
Suitable for:

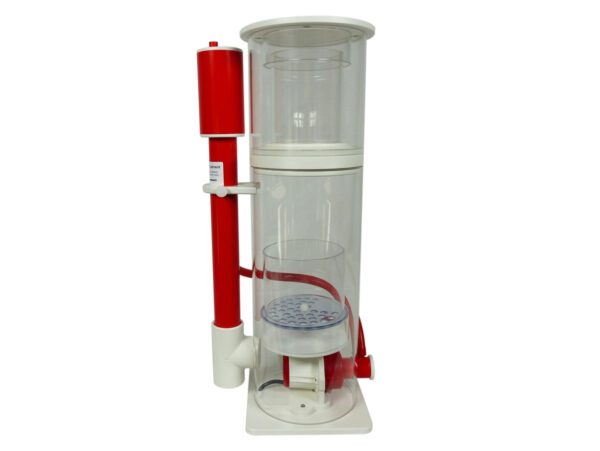

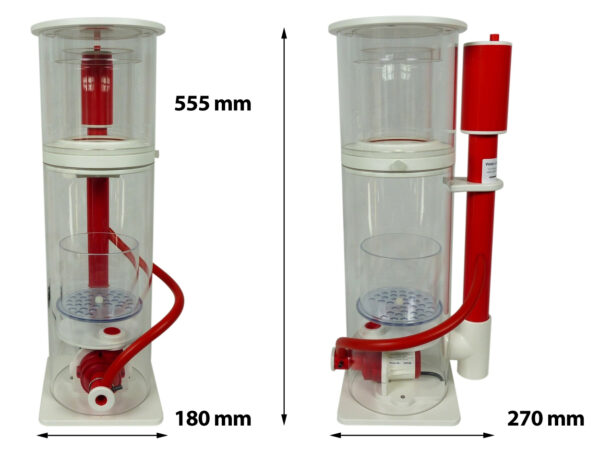

ONLY for Mini Bubble King 160 RDX // MBK160 RDX VS2020 / 2021

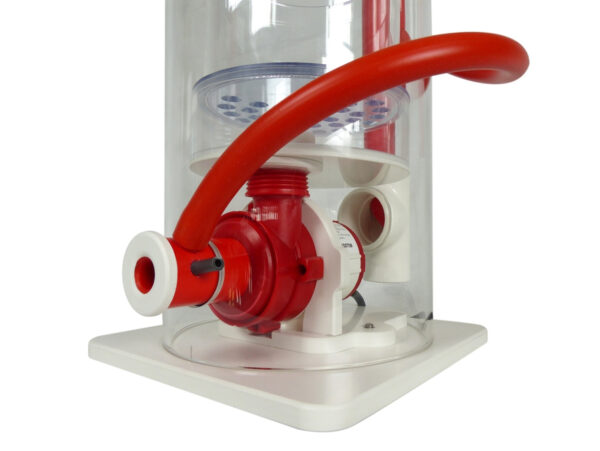

Delivery with suitable connection piece for injection pan (hole plate) and base plate
RDX Skimmer Pump – Operating_and_maintenance_manual.pdf
//////////////////////////////////////////////////////////////////////////////////////////////////////////////////
- Saltwater resistant M4 grade 2 titanium screws
- Saltwater resistant parabolic rubber feet for acoustic decoupling
- Extreme low noise brushless DC-delivery pump with external power electronics
- High efficient technology, Sine Wave for very quiet running
- Inlet and Outlet complete with DIN connection, compact dimensions
- Easy usage and maintenance, low risk of calcification
- compact design against vibrations and oscillation
- CE conformity, developed and built
- high quality touchscreen display with feeding function
(protection against dry-running, over heating, over voltage, blocking etc.) - included in the scope of delivery:
- Pump with 2m supply line
- Controller with 1,5m supply line
- Power plug with 1,5m supply line / rubber connector
- with inlet protection
- with 20mm socket and 25mm socket with O-rings
- Manual German/English
