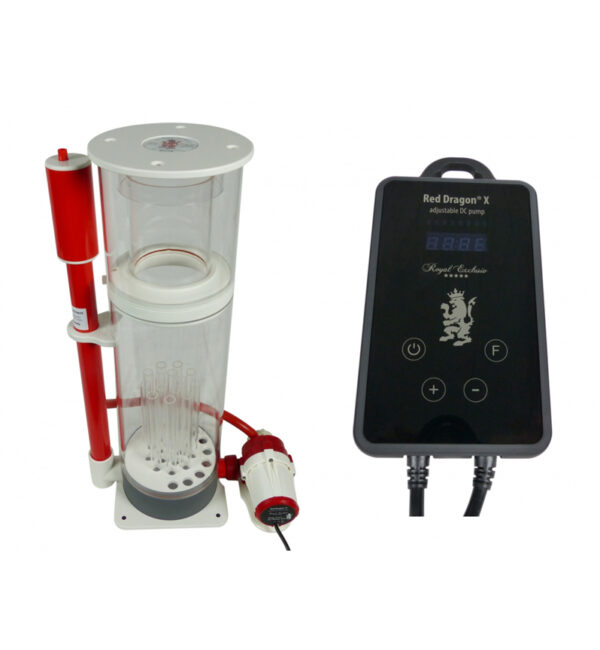

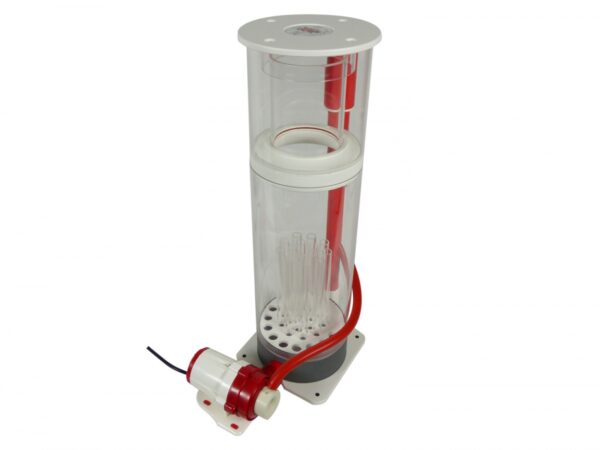

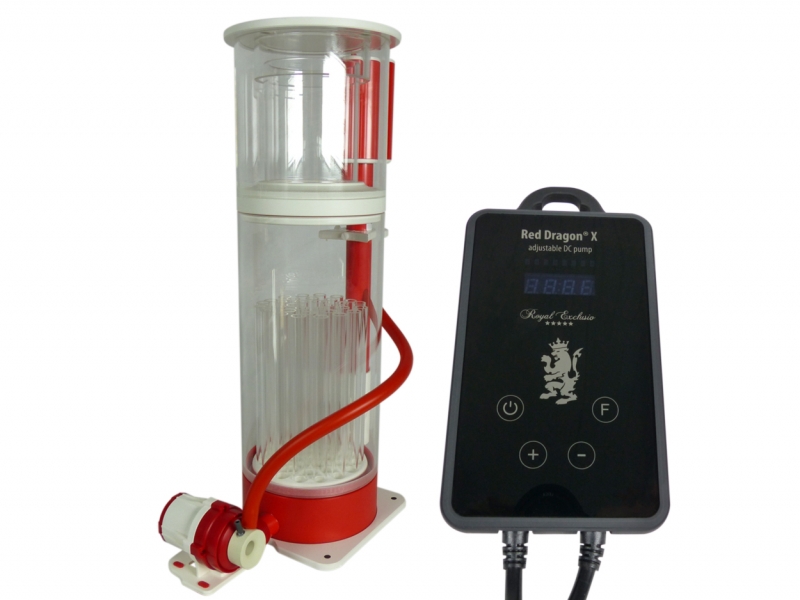

Hard facts Bubble King® Supermarin 160 RDX:
1.000 l/h Air – 4.000 l/h Water = 1 Pump Red Dragon® X 3000 DC 24V
Base plate: 18 cm x 18 cm / height ~ 56 cm
VERSION Bubble King® Supermarin 160 RDX:
Skimmer-Design 2 Versions available
a) grey/red model
b) white/red model
Technical data Bubble King® Supermarin 160 internal:

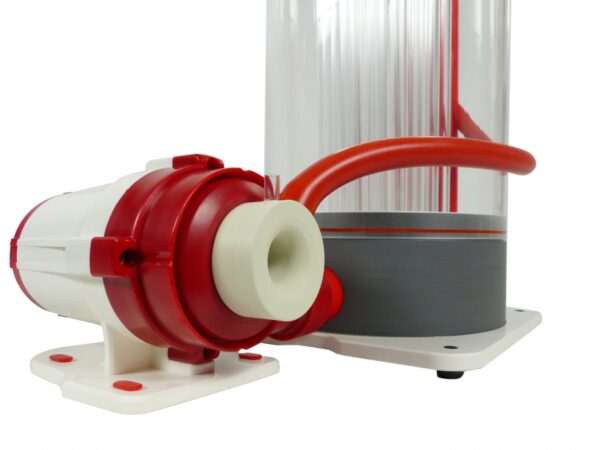

Skimmer-pump: Red Dragon® X 3000
Delivery rate: 350-1.000 l/h Air inlet ~ 400-4.000 l/h Water inlet
wattage power: Pmax = 40 Watt/h
Speed adjustable Brushless DC pump
Revolution per minute (rpm) – Display
Adjustable in 8-steps from ~ 7W up to 40W
Operating voltage: 100-240 Volt 50-60 Hz (24V Technology)
Protection class pump: IP 68 control unit: IP 66
Weight pump without controller: 0,6 kg
Height of intake side: center 60 mm
Dimension pump: 80 mm wide / 130 mm length / ~ 110 mm height
Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height

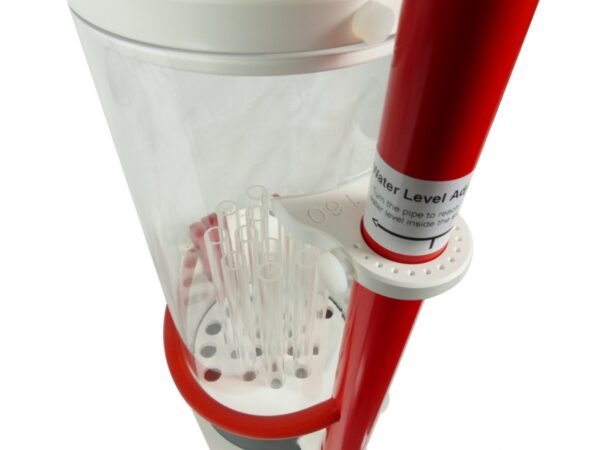

Water level: ~ 130 mm up to ~ 300 mm
Weight skimmer: 6 kg inclusiv pump
Height of intake side: center 60 mm
Dimension skimmer with Pump: 200 mm wide / 380 mm length / ~ 580 mm height
RDX Skimmer Pump – Operating_and_maintenance_manual.pdf
- Saltwater resistant M4 grade 2 titanium screws
- Saltwater resistant parabolic rubber feet for acoustic decoupling
- Extreme low noise brushless DC-delivery pump with external power electronics
- High efficient technology, Sine Wave for very quiet running
- Inlet and Outlet complete with DIN connection, compact dimensions
- Easy usage and maintenance, low risk of calcification
- compact design against vibrations and oscillation
- CE conformity, developed and built

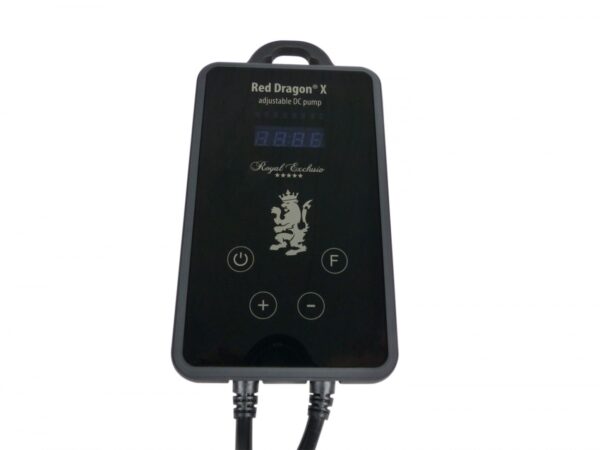

- high quality touchscreen display with feeding function
(protection against dry-running, over heating, over voltage, blocking etc.) - included in the scope of delivery:
- Pump with 2m supply line
- Controller with 1,5m supply line
- Power plug with 1,5m supply line / rubber connector
- Nozzle with Air- and Ozone connection
- Manual German/English
Operating_and_maintenance_manual.pdf
Manual for MBK RD X following soon.
