Hard Facts Bubble King® Supermarin 250 BK DC 24V:
max. 660.43″ (2.500 l/h) Air – 2.000 GPH (7.500 l/h) Water = 1 (Bubble King®) BK2500 DC 24V

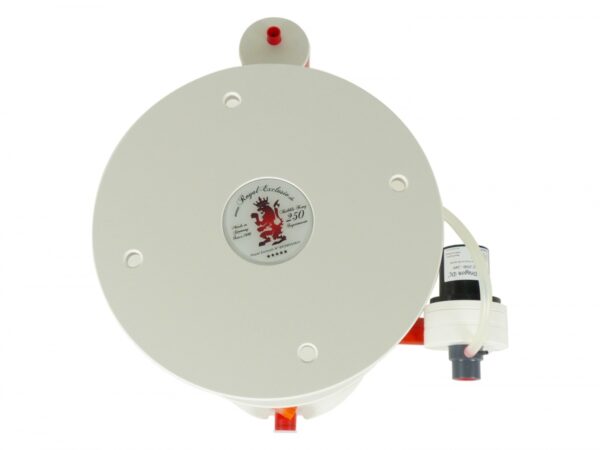

Base plate: Ø 10.63″ (27 cm) / height ~ 22.83″ (58 cm)
Weight skimmer: 12 kg inclusiv pumps
Water level: ~ 7.09ʺ up to ~ 9.06ʺ (ideal ~ 8ʺ) (~ 180 mm up to ~ 230 mm)
Technical data Bubble King® Supermarin 250 + BK DC 24V:
1 x Skimmer-pump: Bubble King® 2500 DC
Technical data Red Dragon® Bubble King® DC skimmer pump:
With needle wheel
adjustable DC-pump with 24V / 67W
Delivery rate: max. 2.500 l/h Air inlet ~ 7.500 l/h Water inlet
Wattage – active power: P max. 67 Watt/h
Removable controller and power supply
Cable length pump – controller: ~ 3 m
Cable length controller – power supply: ~ 1,5 m
Operating voltage: 100 – 240 Volt 50/60 Hz
Protection class: IP 68 pump
Dimension skimmer without pump:
14.57″ wide / 11.02″ length / ~ 22.83″ height
Dimension skimmer with pump (90 ° to torque tube):
17.32″ wide / 14.57″ length / ~ 22.83″ height
Dimension skimmer with pump (compared with torque tube):
11.02″ wide / 20.08″ length / ~ 22.83″ height

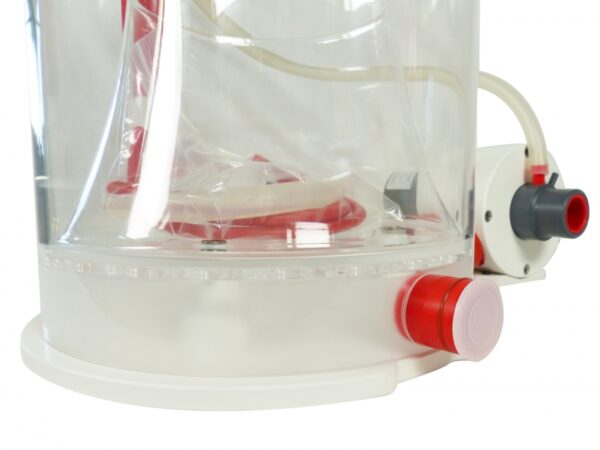

Height silicon outlet (cleanout) ~ 15.75″
Dimension skimmer without pump:
370 mm wide / 280 mm length / ~ 580 mm height
Dimension skimmer with pump (90 ° to torque tube):
440 mm wide / 370 mm length / ~ 580 mm height
Dimension skimmer with pump (compared with torque tube):
280 mm wide / 510 mm length / ~ 580 mm height
Height silicon outlet (cleanout) ~ 400 mm
