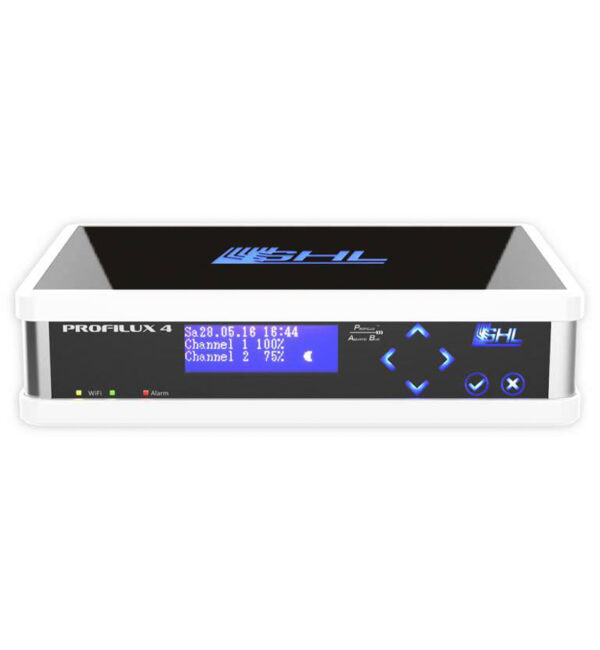

Profilux 4.1 Controller
Profilux 4e
Profilux 4e
Profilux 4e
Profilux 4e

ProfiLux 4.1e

$524.90

The smart entry into professional aquarium control – with wired network connectivity. ProfiLux 4.1e – GHL’s proven aquarium controller with integrated modules for temperature and pH/ORP. 32-channel illumination control, 16-channel pump control. WiFi, LAN (Ethernet), and USB. Three Expansion Card slots and PAB. OTA firmware updates. Fully expandable whenever your setup demands more.

This item ships directly from the manufacturer/supplier.

Description

Your aquarium runs 24/7 – and so does the ProfiLux 4.1e. GHL’s proven controller delivers precise measurement and control of pH/ORP and temperature, alongside 32-channel illumination simulation (clouds, storms, moon phases, seasonal lighting), 16-channel stream and return pump control, 32-channel dosing pump control, automatic water change management, and level/flow/leakage monitoring. Conductivity measurement is easily added at any time via an expansion card – no hardware replacement, no disruption to your setup.

The ProfiLux 4.1e connects via WiFi, LAN (Ethernet), and USB – for maximum flexibility in choosing the most reliable connection. The wired LAN port delivers the stable network connectivity that demanding installations require. OTA firmware updates are applied wirelessly or via network – no USB cable needed.

At the heart of the ProfiLux 4.1e runs ProfiLuxOS – not a general-purpose platform adapted for aquariums, but an operating system designed from day one with one priority: keeping your aquarium safe. Purpose-built hardware, purpose-built OS. No shortcuts.

Stay connected via the GHL Connect app, built-in webserver, email notifications, or the myGHL cloud service – from anywhere, on any device. GHL Connect and GHL Control Center also work fully locally on your home network. No cloud dependency required.

Three built-in expansion slots accept Expansion Cards for additional measurement inputs. The optional Expansion Box 2 adds five more slots. Pair your ProfiLux with the GHL Doser for automated dosing, the KH Director® for continuous alkalinity control, or the ION Director® for calcium and magnesium monitoring – all seamlessly integrated. The smart way into the GHL ecosystem – with the connectivity to match.

ProfiLux 4.1e controller includes

  • ProfiLux 4.1e controller
  • Power supply (country-specific)
  • Digital water temperature sensor (lab grade)
  • USB cable
  • Null-plug

Difference Between ProfiLux 4.1 and ProfiLux 4.0

The ProfiLux 4.1 takes connectivity further versus the ProfiLux 4.0: in addition to WiFi and USB, it adds a LAN port (Ethernet) and supports OTA firmware updates – wirelessly or via network, no USB required.

Additional Information

For more information, please visit our:

Color

Black, White

Additional Information

Weight 1.71 kg
Dimensions 33 × 28 × 11 cm
Color White, Black
Country Version DE, Schuko, UK, CH, AUS, USA
WEEE-Reg.-Nr. DE96760492
Dimensions W x D x H: 220 x 150 x 55 mm
Delivery includes Power supply, digital water temperature sensor (lab grade), USB cable, Null-plug
Illumination Channels 32
1-10 V Interfaces 6 (optional 30)
Controllable, separately switchable Sockets 64
Dosing Pump Control Yes
Stream Pump Control Yes
Controls GHL automatic feeder Yes (accessory required)
Level Yes
Graphical display Yes
Automatic water change Yes
USB / RS232 Yes / Yes
WiFi / LAN Yes / –
Webserver / Email-Client Yes / Yes
Alarm Visually / acoustically
Expansion slots 3 (1x internal)
Input for pH-value sensor Yes
Input for Water-Temperature-Sensor Yes
Expansion Box extension possible Yes
Redox / ORP Yes
Conductivity Optional
Oxygen Optional
Relative Humidity Optional
Air Temperature Optional
KH / Alkalinity Optional
AUX Port Yes
Inputs Level Sensors / Flow Sensors / Leakage Detectors 4 (optional 16)
Cloudservice myGHL Yes
Mitras Lightbar Interface Yes
Digital outputs / Switch channels Optional 64
Operating System ProfiLuxOS
Power failure monitor port Yes
Sensors included Water Temperature
DCF Receiver port Yes
ProfiLux Aquatic Bus (PAB) Yes
GHL Control Pad port Yes
Ion-selective measurement for Ca, Mg, K, Na, NO3 Optional

Expandablility

Unmatched Expansion Options

ProfiLux 4.1 includes a large selection of expansion options to suit the needs of any aquarist. When you need to add more functions, simply add an expansion card to one of the available expansion slots. No need to buy additional modules, just pop the card in and you’re good to go.

Between Expansion Cards and Expansion Boxes, you can expand the ProfiLux to nearly no limit!

GCC, GHL Connect App, Cloud Service

GCC, GHL Connect App, Cloud Service myGHL

GHL Devices are easily accessible via the free PC software GCC GHL Connect app and cloud service myGHL. (> learn more).

Warranty

GHL provides a 24-month limited warranty against all processing and material defects. Warranty period begins at the date of purchase.
