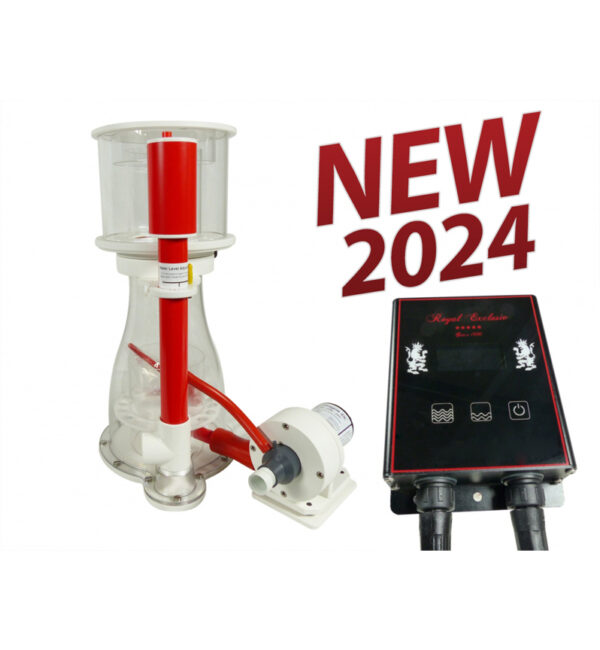

Hard Facts Bubble King®Double Cone 200 BK DC 24V:
max. 660 GPH (2.500 l/h) Air – 2.000 GPH (7.500 l/h) Water = 1 (Bubble King®) BK2500 DC 24V
with Bubble King® DC 24V with max. 67 Watt / 2.500 l/h air intake
Base plate: 9.84ʺ x 12.60ʺ / height ~ 21.65ʺ (25 cm x 32 cm / height ~ 55 cm)
Technical data Bubble King® Double Cone 200 BK DC 24V:
1 x Skimmer-pump: Bubble King® 2500 DC

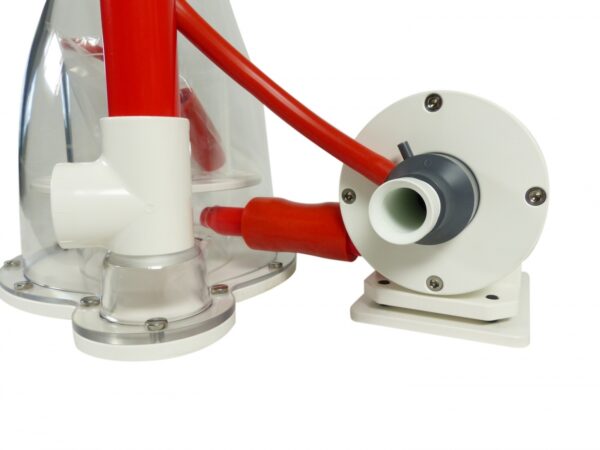

Technical data Red Dragon® Bubble King® DC skimmer pump:
With needle wheel
adjustable DC-pump with 24V / 67W
Delivery rate: max. 2.500 l/h Air inlet ~ 7.500 l/h Water inlet
Wattage – active power: P max. 67 Watt/h
Removable controller and power supply
Cable length pump – controller: ~ 3 m
Cable length controller – power supply: ~ 1,5 m
Operating voltage: 100 – 240 Volt 50/60 Hz
Protection class: IP 68 pump
with 10V connection (jack plug)
Water level: ~ 7.87ʺ up to ~ 9.84ʺ
Water level: ~ 200 mm up to ~ 250 mm
Outlet absorbate: 350 mm
Weight skimmer: 10 kg inclusiv pump
Dimension skimmer without pump:
250 mm wide / 320 mm length / ~ 545 mm height
Dimension skimmer with pump:
10.63ʺ wide / 16.54ʺ length / ~ 21.65ʺ height
270 mm wide / 420 mm length / ~ 545 mm height
Data_sheet_and_spare_parts.pdf Operating_and_maintenance_manual.pdf
