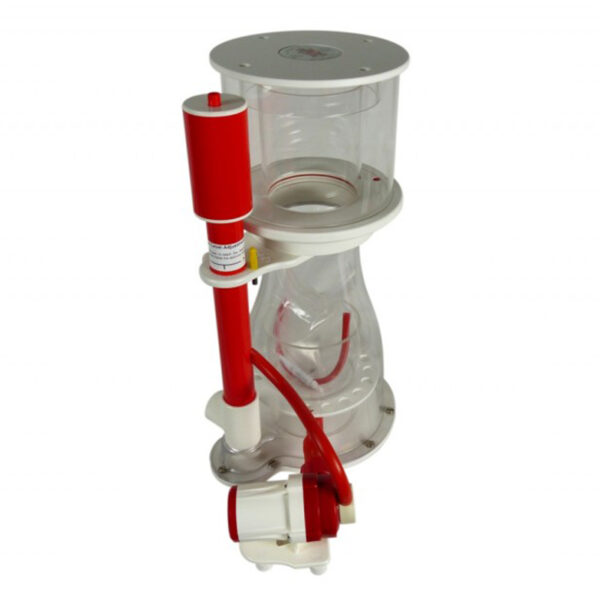

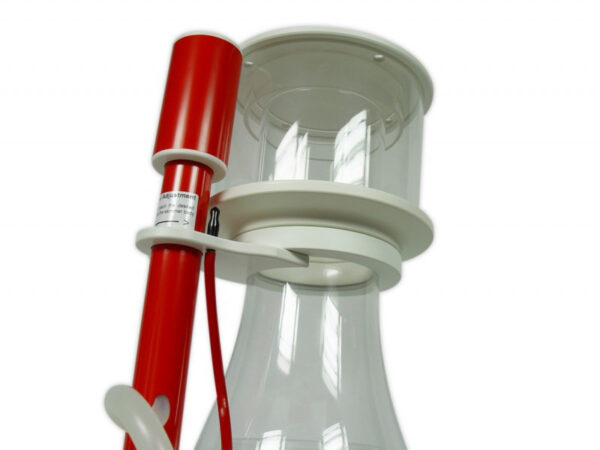

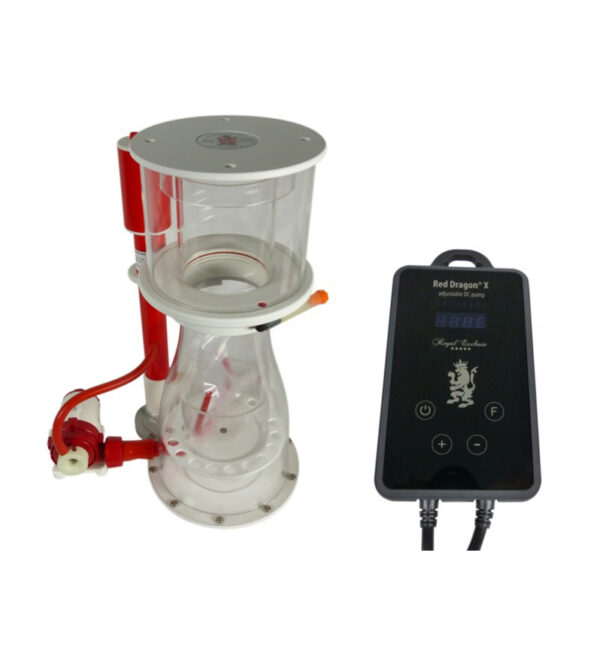

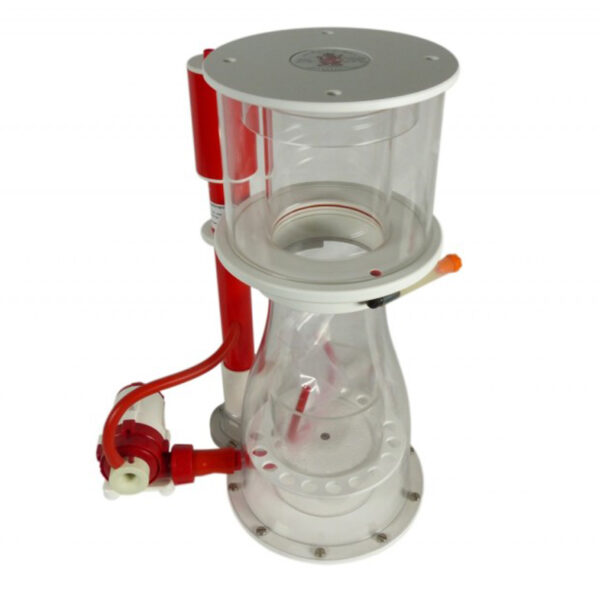

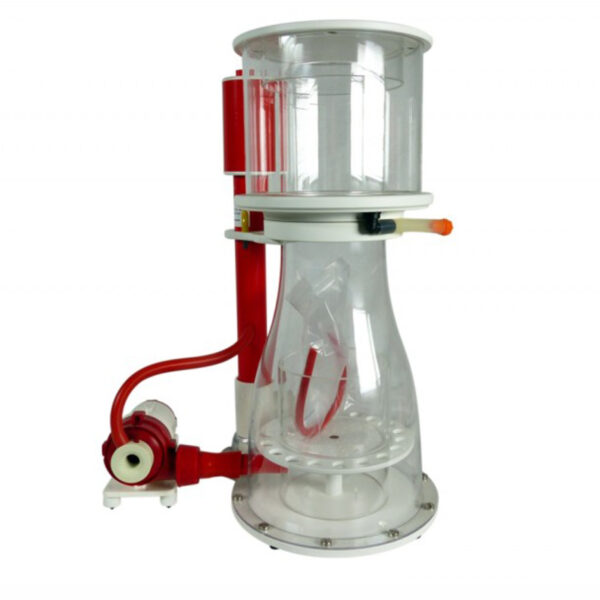

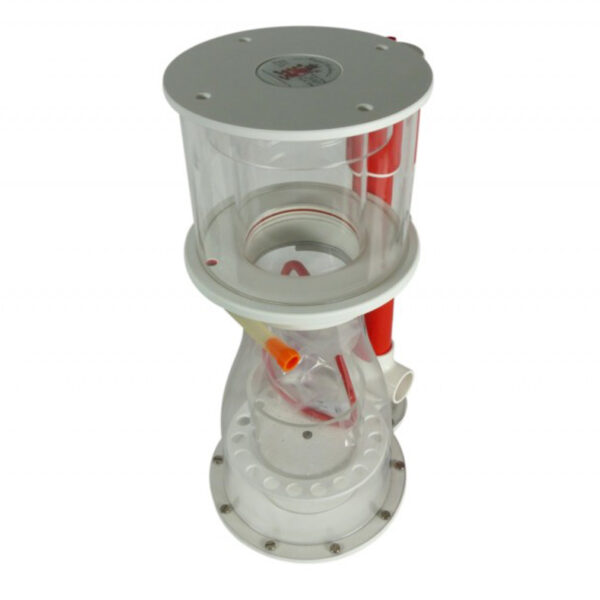

Hard facts Bubble King®Double Cone 200 RDX:
max. 1.500 l/h air-intake // max. 4.000 l/h water-intake
with Red Dragon® X pump 50 Watt / 1.500 l/h air intake
Base plate: 9.84ʺ x 12.60ʺ / height ~ 21.65ʺ (25 cm x 32 cm / height ~ 55 cm)
Bubble King® Double Cone 200 + RDX DC 24V
$1,249.00
For aquariums/tanks up to 264 gallons (1000 liters)
This item ships directly from the manufacturer/supplier.
Availability: 2 in stock
Technical data
Technical data Bubble King® Double Cone 200 RDX:
Skimmer pump
Skimmer-pump: Red Dragon® X pump 50 Watt / 1.500 l/h air intake
Delivery rate: max. 1.500 l/h air-intake // max. 4.000 l/h water-intake
Wattage – active power: P = 15-50 Watt/h
Operating voltage: 230 Volt 50 Hz (also in 110V/60Hz available) (24V Technology)
Protection class: IP 68
Water level: ~ 7.87ʺ up to ~ 9.84ʺ (~ 200 mm up to ~ 250 mm)
Weight skimmer: 7 kg inclusiv pump
Dimension skimmer without pump:
9.84ʺ wide / 12.60ʺ length / ~ 21.65ʺ height
Dimension skimmer with pump:
14.96ʺ wide / 15.75ʺ length / ~ 21.65ʺ height
Dimension skimmer without pump:
250 mm wide / 320 mm length / ~ 550 mm height
Dimension skimmer with pump:
380 mm wide / 400 mm length / ~ 550 mm height
Data_sheet_and_spare_parts.pdf Operating_and_maintenance_manual.pdf
BK DC 200 RDX manual following soon
Red Dragon® X pump 50Watt 1.500 l/h
Technical data Red Dragon® X pump 50 Watt / 1.500 l/h air intake:
max. 50 Watt/h, adjustable 15-50 Watt
speed adjustable Brushless DC pump (24V Technology)
Intake side: Nozzle with ozone & air plug
Pressure side: reducing ring Ø 32 mm
Delivery rate: max. 1.500 l/h air-intake // max. 4.000 l/h water-intake
Operating voltage: 230 Volt 50 Hz (also in 110V/60Hz available) (24V Technology)
Protection class pump: IP 68 control unit: IP 66
Weight pump: 2,3 kg
Dimension pump: 110 mm wide / 190 mm length / ~ 150 mm height
Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height
RDX Skimmer Pump – Operating_and_maintenance_manual.pdf
- Saltwater resistant M4 grade 2 titanium screws
- Saltwater resistant parabolic rubber feet for acoustic decoupling
- Extreme low noise brushless DC-delivery pump with external control electronics
- High efficient technology, Sine Wave for very quiet running
- Easy usage and maintenance, low risk of calcification
- compact design against vibrations and oscillation
- CE conformity, developed and built
- high quality touchscreen display with feeding function
(protection against dry-running, over heating, over voltage, blocking etc.) - included in the scope of delivery:
- Pump with 2m supply line
- Controller with 1,5m supply line
- Power plug with 1,5m supply line / rubber connector
- Nozzle with Air- and Ozone connection
- Manual German/English
