Hard facts Bubble King® Double Cone 250 BK DC 24V:
max. 660 GPH (2.500 l/h) Air – 2.000 GPH (7.500 l/h) Water = 1 (Bubble King®) BK2500 DC 24V
with Bubble King® DC 24V with max. 67 Watt / 2.500 l/h air intake
Base plate: 11.81ʺ x 14.57ʺ / height ~ 23.23ʺ (30 cm x 37 cm / height ~ 59 cm)
Technical data Bubble King® Double Cone 250:
1 x Skimmer-pump: Bubble King® 2500 DC

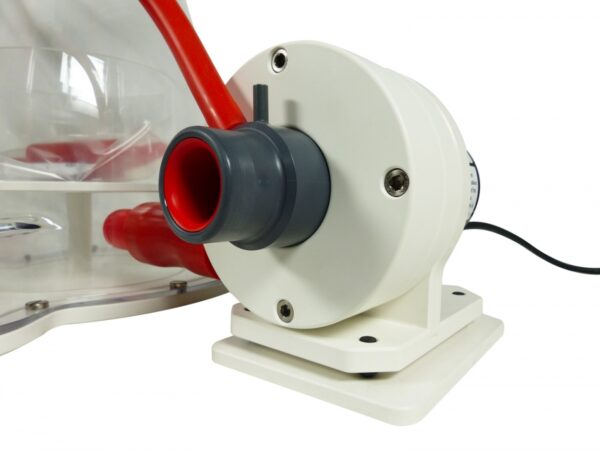

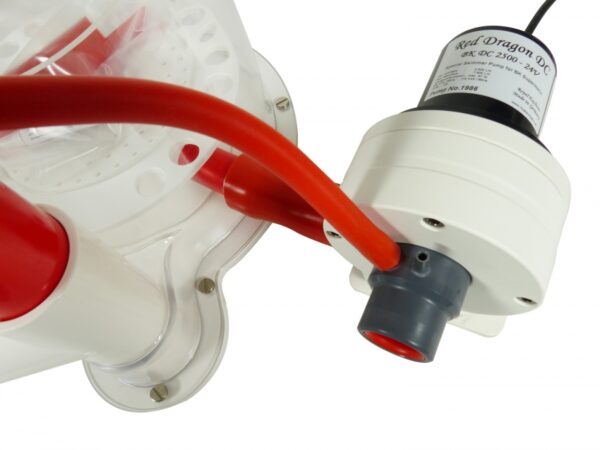

Technical data Red Dragon® Bubble King® DC skimmer pump:
With needle wheel
adjustable DC-pump with 24V / 67W
Delivery rate: max. 2.500 l/h Air inlet ~ 7.500 l/h Water inlet
Wattage – active power: P max. 67 Watt/h
Removable controller and power supply
Cable length pump – controller: ~ 3 m
Cable length controller – power supply: ~ 1,5 m
Operating voltage: 100 – 240 Volt 50/60 Hz
Protection class: IP 68 pump
with 10V connection (jack plug)
Water level: ~ 200 mm up to ~ 250 mm
Outlet absorbate: 380 mm
Weight skimmer: 11 kg inclusiv pump
Dimension skimmer without pump:
11.81ʺ wide / 14.57ʺ length / ~ 23.23ʺ height
Dimension skimmer with pump:
13.39ʺ wide / 19.29ʺ length / ~ 23.23ʺ height
Dimension skimmer without pump:
300 mm wide / 370 mm length / ~ 585 mm height
Dimension skimmer with pump:
340 mm wide / 490 mm length / ~ 585 mm height
FOLLOWING ASAP Data_sheet_and_spare_parts.pdf Operating_and_maintenance_manual.pdf
